How to set Intel E810 for StarWind NVMe-oF Initiator with Intel E810. RDMA use case

Description

When using Intel E810 series network adapters, StarWind NVMe-oF Initiator might not discover or connect to an NVMe-oF target over RDMA. This issue is typically caused by incorrect RDMA or NIC configuration on systems using Intel E810 adapters.

Please note that this KB covers third-party hardware and software optimization. Its subject is not directly related to StarWind and DataCore products. Please consider reaching out to the hardware provider’s support for up-to-date information and integration steps.

Please also make sure to verify general RDMA connectivity between the target and initiator before proceeding.

Symptoms

• RDMA discovery fails
• Connection to the NVMe-oF target over RDMA fails
• Discovery over TCP works correctly
• RDMA functionality in general appears unavailable or misconfigured

Cause

The issue is usually caused by one or more of the following:

• Intel drivers are not installed or are outdated
• RDMA User Mode driver missing
• NetworkDirect Technology is not set to RoCEv2
• Jumbo Frames disabled
• Flow Control disabled
• RoCEv2 Frame Size mismatch
• RDMA routing is not enabled across subnets

Resolution

1. Install Intel Network Drivers. Download and install the appropriate Intel driver for a given OS.
2. Install Intel Administrative Tools (Optional) https://www.intel.com/content/www/us/en/download/2593/administrative-tools-for-intel-network-adapters.html
3. Install RDMA User Mode Driver: https://www.intel.com/content/www/us/en/download/15084/intel-ethernet-adapter-complete-driver-pack.html
4. Install the RDMA User Mode Driver included in the package.
5. Verify RDMA Services. Run the following PowerShell command:

Get-Service "*rdma*" | Select Name, DisplayName, Status

6. Ensure RDMA-related services are present and running.

7. Verify RDMA adapter status.
   Check RDMA capability with

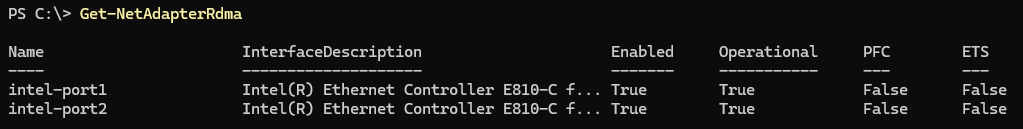

         Get-NetAdapterRdma

 The adapter should have TRUE under Enabled.

8. Configure NetworkDirect Technology
   Set NetworkDirect Technology to RoCEv2  via PowerShell:

Get-NetAdapterRdma |Get-NetAdapterAdvancedProperty -DisplayName "NetworkDirect Technology" |Set-NetAdapterAdvancedProperty -DisplayValue RoCEv2

Verify:

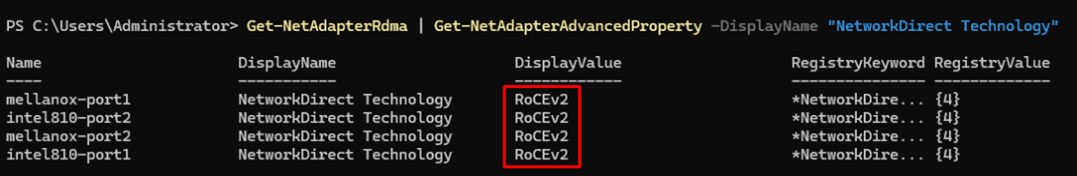

Get-NetAdapterRdma |Get-NetAdapterAdvancedProperty -DisplayName "NetworkDirect Technology."

Alternatively, it can be done from GUI:

• Open Device Manager
• Select the Intel E810 adapter
• Open Advanced Settings

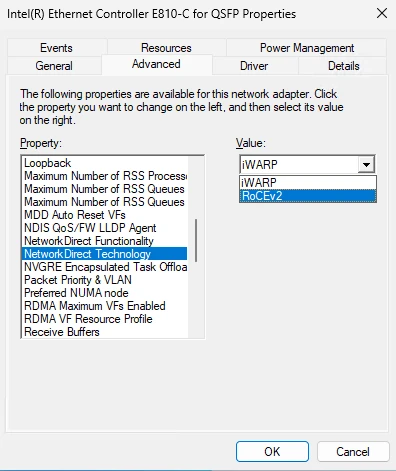

• Set NetworkDirect Technology to RoCEv2


Verify the settings via PowerShell:

Get-NetAdapterRdma | Get-NetAdapterAdvancedProperty -DisplayName "NetworkDirect Technology"

9. Enable Jumbo Frames:

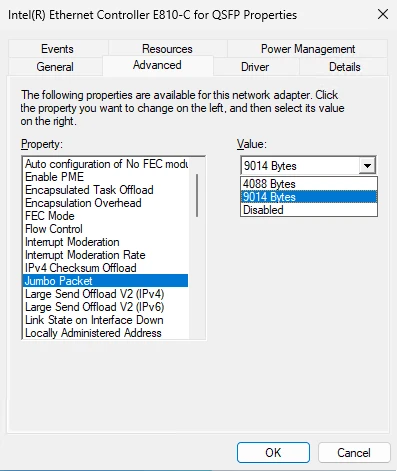

   Go to Device Manager ->Select the Intel E810 adapter  -> Find Jumbo Packet  -> Set Jumbo Packet to 9014

   NOTE: Make sure to align the Jumbo Packet value on the entire network stack: switches and the target NICs. Verify the transmission settings with ping -f -l 8000 <target IP>

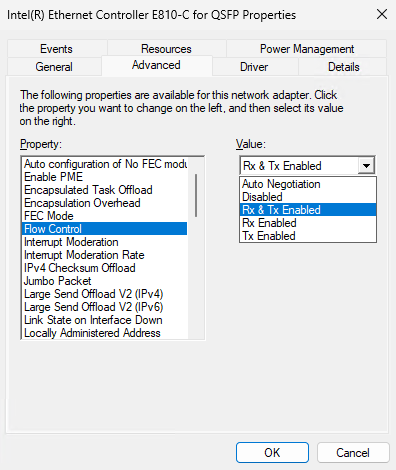

10. Enable Flow Control under the Advanced settings of the NIC.

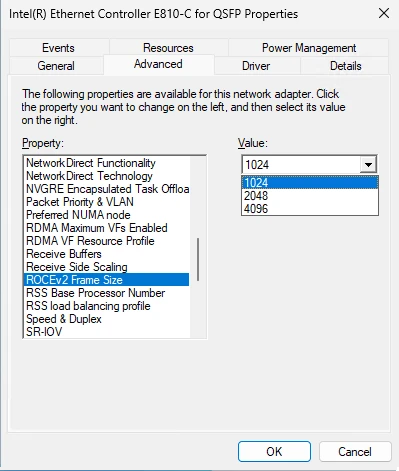

11. Check RoCEv2 Frame Size.

12. Allow RDMA traffic across IP subnets if needed:

Set-NetOffloadGlobalSetting -NetworkDirectAcrossIPSubnets Allowed

Conclusion

Proper configuration of Intel E810 network adapters is essential for enabling reliable RDMA functionality with the StarWind NVMe-oF Initiator. Most connectivity and discovery issues stem from incomplete driver installation, incorrect RDMA settings, or mismatched network configurations rather than problems with the NVMe-oF stack itself.
Following the steps outlined in this guide should resolve the majority of RDMA-related connectivity issues with Intel E810 adapters.
